Equation Creation, Edit, and Deletion

Creating an Equation
  1. Navigate to an item containing the HTML Editor.

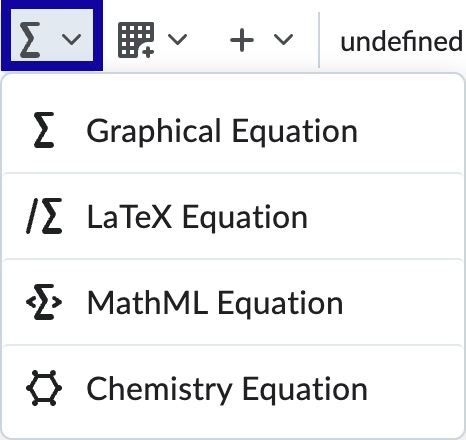

  2. Select the Graphical Equation icon on the toolbar.
    graphical equation icon
  3. From the options, select Graphical equation, MathML equation, Chemistry, or LaTex equation.

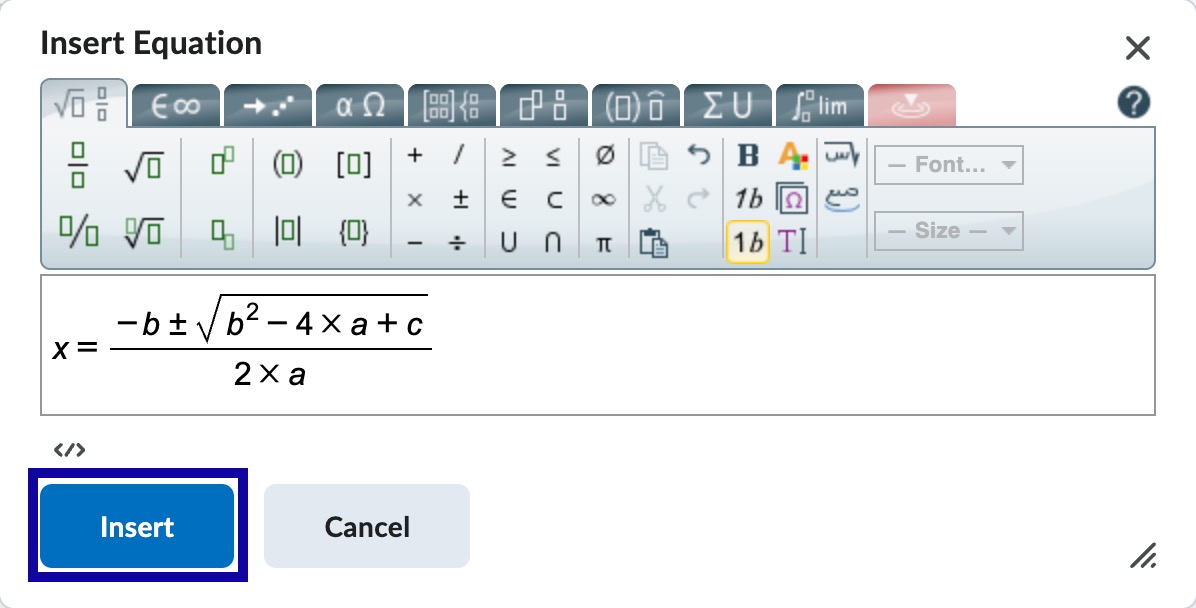

  4. Use the Insert Equation options to enter the equation.
  5. Select Insert.
  6. Enter any additional information that should be included with the equation.
    equation editor

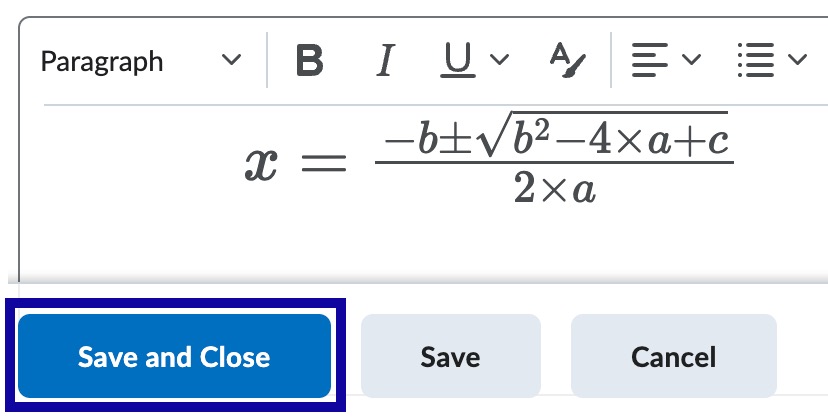

  7. Select Save or Update.
Editing an Equation

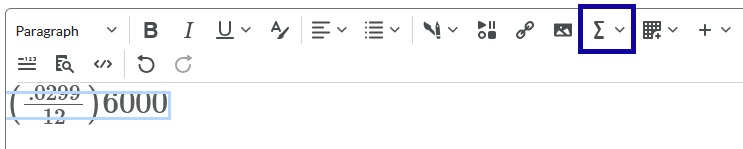

  1. To edit an equation, click the equation in the HTML Editor to select it.
    editing equation

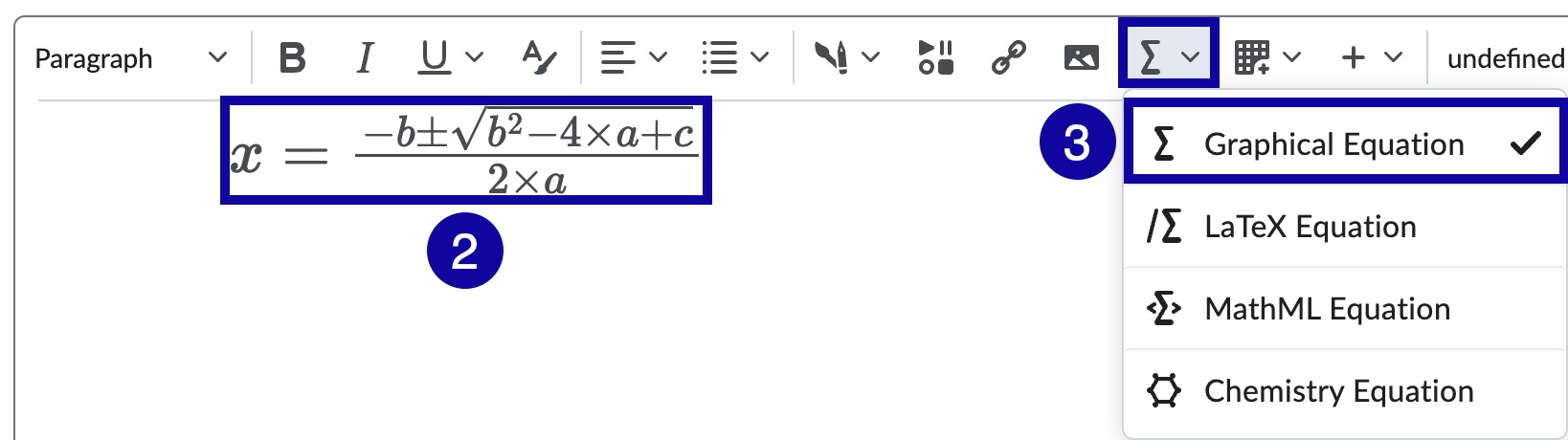

  2. Select the Graphical Equation icon on the toolbar.
    Select the Graphical Equation Icon.
  3. Use the Edit Equation options to edit the equation.
  4. Select Insert.
  5. Select Update to save your changes.
Deleting an Equation

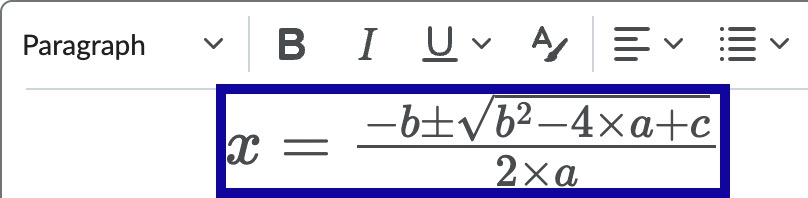

  1. To delete an equation, click the equation in the HTML Editor to select it.
    deleting equations
  2. Select Delete on your keyboard.
  3. Select Update to save your changes.
